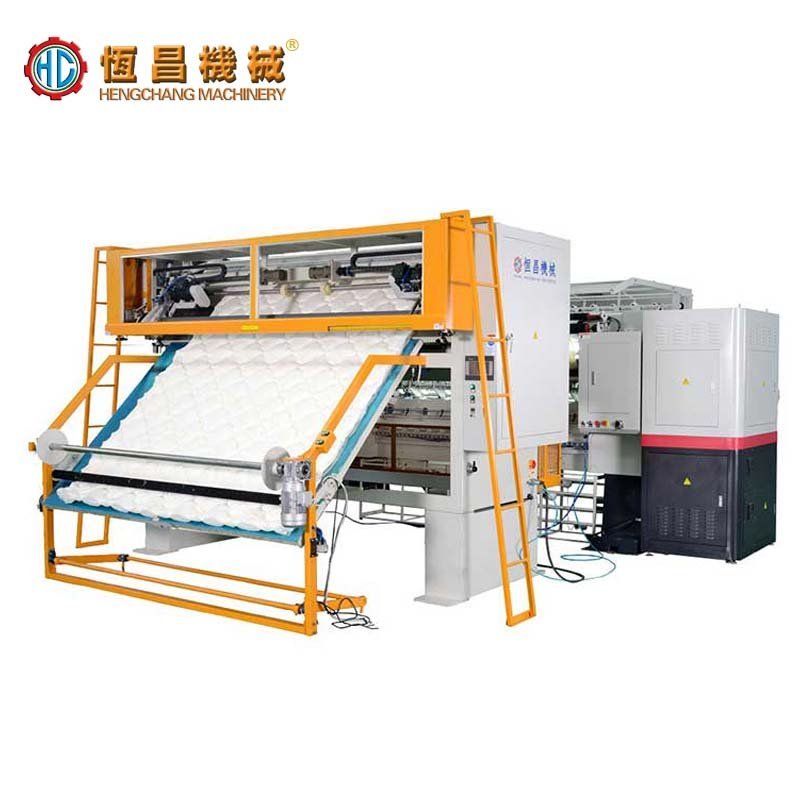

HC-QG-E Automatic Panel Cutting Machine
Computer automatic panel cutting machine with encoder data transmission supporting cutting of any length and multiple cutting specifications.
This machine is quoted individually. Contact our sales team for pricing, a CAD layout and a delivery plan — normally within 24 business hours.
Description
Computer automatic panel cutting machine with encoder data transmission supporting cutting of any length and multiple cutting specifications. Supplied by PoisTech — delivered, installed and commissioned across Morocco, with full technical documentation, 12-month warranty and nationwide after-sales support.
Technical specifications
| Frame Size (L×W×H) | 3750×2500×2100 mm |
| Weight | 1500 kg |
| Board Length | 2000 mm |
| Thickness | 3–80 mm |
| Width | 100–2500 mm |
| Speed | 7000 mm/min |
| Power | 3 kW |
| Power Supply | 380V/50 Hz · 220V/60 Hz |
| Air Pressure | 0.4–0.8 MPa |
Key features
- Encoder data transmission — any-length cutting
- Touchscreen parameter setting with PLC control
- Infrared safety control
- High cutting precision
