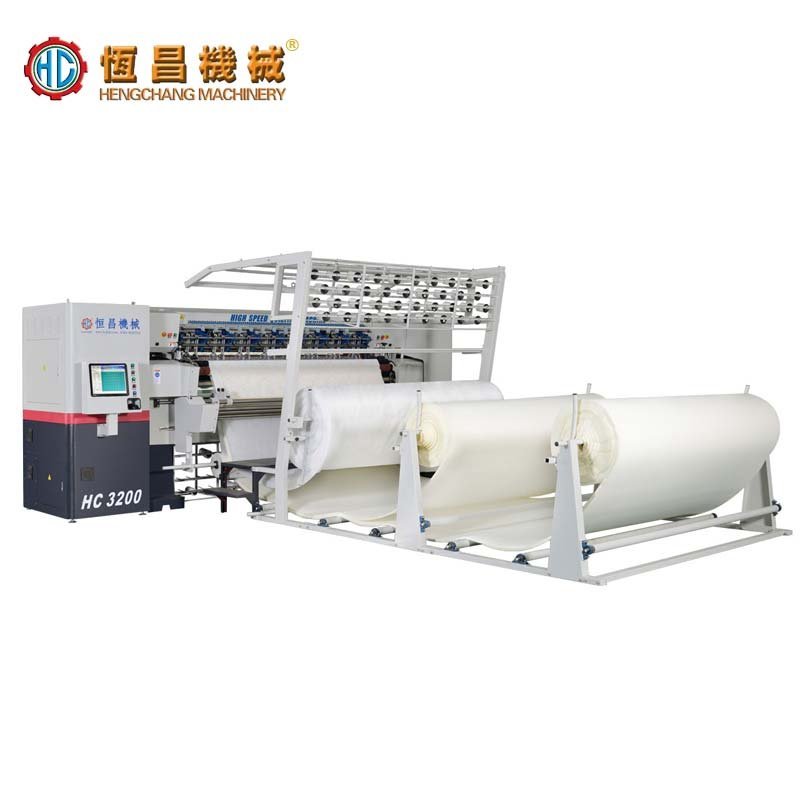

HC-3200 High-Speed Shuttleless Multi-Needle Quilting Machine
High-speed computer shuttleless multi-needle quilting machine with independent pattern quilting and pneumatic thread-trimming technology for fast, clean thread cutting.
This machine is quoted individually. Contact our sales team for pricing, a CAD layout and a delivery plan — normally within 24 business hours.
Description
High-speed computer shuttleless multi-needle quilting machine with independent pattern quilting and pneumatic thread-trimming technology for fast, clean thread cutting. Supplied by PoisTech — delivered, installed and commissioned across Morocco, with full technical documentation, 12-month warranty and nationwide after-sales support.
Technical specifications
| Size (L×W×H) | 5100×1500×2000 mm |
| Weight | 6000 kg |
| Quilt Width | 2450 mm |
| Rotation Speed | 600–1200 RPM |
| Production Speed | 80–280 m/h |
| Needle Size | 130/21 · 140/22 · 160/23 · 180/24 |
| Needle Arrangement | (50.8/76.2/127) · (76.2/76.2/152.4) |
| Max. Horizontal Movement | 450 mm |
| Needle Space | 25.4 mm |
| Voltage | 380V/220V · 50/60 Hz |
| Stitch Size | 2–7 mm |
| Power | 10 kW |
| Quilting Thickness | ≤80 mm |
Key features
- 19-inch large LCD control screen
- New enhanced double-bearing pin row seat
- Stable hopper balance system
- Automatic fabric-thickness adjustment
- Pneumatic thread trimming
